Clustering

Classification in SAX-VSM merges every training series of a class into one tf·idf bag per class. Clustering uses the same discretization and weighting but keeps one bag per series, then groups those vectors in cosine space. That is useful for exploratory views, dendrograms, or checking whether classes separate before you train a classifier.

The implementation is net.seninp.jmotif.cluster in sax-vsm_classic (net.seninp:sax-vsm:2.0.1). Distances are cosine similarity on tf·idf vectors — the same geometry as the classifier.

1. CBF example

The Cylinder–Bell–Funnel (CBF) benchmark is the clearest clustering demo in this stack: three distinct shapes, 100% classifier accuracy on the full test set at -w 60 -p 8 -a 6, and near-perfect unsupervised splits on the bundled 30-series train sample.

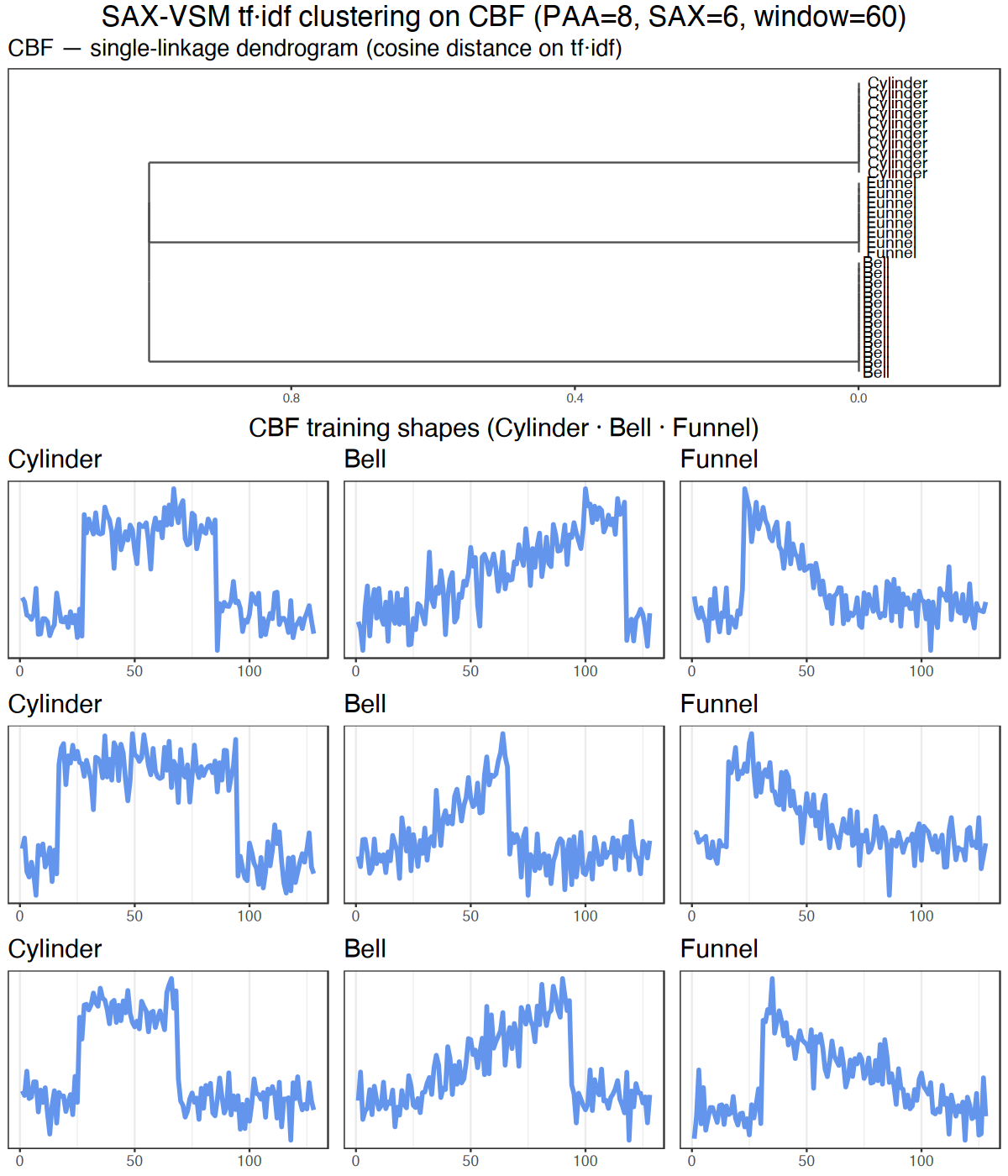

Single-linkage dendrogram on per-series tf·idf (top) and training shapes (bottom). Figure from cbf_clustering_plots.R in the Java repo.

Results on bundled train subsets

Same SAX parameters as the classifier tutorial (EXACT numerosity reduction, threshold 0.01). Purity = fraction of series whose true class matches the plurality label in their cluster.

CBF separates cleanly with single-linkage hierarchical clustering and a 3-way partition(k) cut. Gun_Point is harder: k-means recovers most of the structure but is seed-sensitive; a naive 2-cluster cut at the dendrogram root does not match the two motion classes.

2. Build tf·idf and cluster in Java

The facade SAXVSMClustering mirrors SAXVSMEvaluator: read labeled UCR data, build per-series vectors, then cluster.

import java.util.List;
import java.util.Map;
import net.seninp.jmotif.cluster.ClusterAssignments;
import net.seninp.jmotif.cluster.Dendrogram;
import net.seninp.jmotif.cluster.KMeansInit;
import net.seninp.jmotif.cluster.Linkage;
import net.seninp.jmotif.cluster.SAXVSMClustering;
import net.seninp.jmotif.sax.NumerosityReductionStrategy;
import net.seninp.jmotif.text.Params;
import net.seninp.util.UCRUtils;

Map<String, List<double[]>> train =
    UCRUtils.readUCRData("src/resources/data/cbf/CBF_TRAIN");
Params params = new Params(60, 8, 6, 0.01, NumerosityReductionStrategy.EXACT);

Map<String, Map<String, Double>> tfidf = SAXVSMClustering.seriesTfidf(train, params);
Map<String, String> labels = SAXVSMClustering.seriesLabels(train);

ClusterAssignments km =
    SAXVSMClustering.kMeans(tfidf, 3, KMeansInit.FURTHEST_FIRST, 2L);
System.out.printf("k-means purity: %.2f%n", km.labelPurity(labels));

Dendrogram tree = SAXVSMClustering.hierarchical(tfidf, Linkage.SINGLE);
ClusterAssignments hc = tree.partition(3);
System.out.printf("HC purity: %.2f%n", hc.labelPurity(labels));
System.out.println("Newick: (" + tree.toNewick() + ")");

Expected on the bundled CBF train file: k-means purity 0.90, single-linkage partition(3) purity 1.00 (locked in TestSAXVSMClustering).

3. Command-line clustering

SAXVSMClusteringCLI mirrors SAXVSMClassifier: only train data is required (no test file). SAX options are the same (-w, -p, -a, --strategy, --threshold).

java -cp "target/sax-vsm-2.0.1-jar-with-dependencies.jar" \
  net.seninp.jmotif.cluster.SAXVSMClusteringCLI \
  -train src/resources/data/cbf/CBF_TRAIN -k 3 -w 60 -p 8 -a 6 \
  --init furthest_first --seed 2

Stdout ends with a summary line and per-cluster label counts, e.g. clustering results: ... purity 0.90. Hierarchical runs also print newick: (...) and accept --newick_out.

4. Lower-level API and figures

• ClusterAssignments — clusterOf(id), members(k), labelPurity(trueLabels)
• Dendrogram — toNewick(), partition(k) for a greedy k-way cut
• TextProcessor.perSeriesWordBags — build bags yourself if you need custom ids

For publication-style figures, run cbf_clustering_plots.R from src/resources/RCode/ (requires jmotif-R, ggplot2, ggdendro).

For supervised classification on the same data, see the classification tutorial.
